A virtual private cloud is a logically isolated section of a public cloud where you can launch and run your own resources — servers, databases, storage, and apps — as if they were on your own private network. Crucially, the key word is “isolated.” Even though your virtual private cloud vpc sits inside a shared cloud platform like amazon web services, microsoft azure, or Google Cloud, no other tenant can see or reach your vpc resources. You control the ip addresses, subnets, routing tables, and security rules. In short, a virtual private cloud gives you the safety of a private network with the scale and cost of the public cloud. In this guide, you will learn how a virtual private cloud works, what parts it is made of, and how to set one up across the major cloud platforms.
What a Virtual Private Cloud Is
A virtual private cloud is a private network inside a public cloud. It is logically isolated from every other network on the same cloud platform. Think of it like a walled garden inside a public park. The park is open to everyone who pays for a ticket. Your garden is fenced off — only people and services you invite can enter. In this case, the cloud provider builds the park (the public cloud infrastructure). You build the garden (your virtual private cloud).
The term virtual private cloud vpc is used by all major cloud providers, though the exact name differs. Amazon web services calls it Amazon VPC. Google Cloud calls it a VPC Network. Microsoft azure calls it a Virtual Network (VNet), which serves the same role. In each case, the idea is the same: you get a slice of the cloud that acts like your own data center — with subnets, ip addresses, routing tables, and firewalls — but without the cost of buying and running your own hardware.
VPC vs VPN — Key Difference
A virtual private cloud is not the same as a virtual private network vpn. A VPN encrypts traffic between two points — like a remote worker and a corporate network. A virtual private cloud is a full network with compute, storage, and networking services. You can connect a VPN to a virtual private cloud to give remote users or branch offices secure access, but the two are different things. The VPC is the network. The VPN is simply a secure tunnel into it.
A virtual private cloud vpc is a logically isolated network inside a public cloud. A virtual private network vpn is an encrypted tunnel that connects two networks. You use a VPN to reach your VPC from outside the cloud — but they are not the same thing.
Why Firms Use a Virtual Private Cloud
Overall, firms use a virtual private cloud for three core reasons: safety, control, and cost. A VPC keeps your workloads isolated from other tenants on the same cloud platform. As a result, this reduces the risk of data leaks, cross-tenant attacks, and config errors that expose resources to the public internet. Regulated industries like finance and healthcare rely on VPCs to meet compliance rules that demand network-level isolation.
Beyond safety, control is the second driver. In a virtual private cloud, you choose your own ip address range, define your own subnets, set your own routing tables, and write your own firewall rules. This level of control is close to what you get in your own private data centers — but without the cost of owning and running the hardware yourself. You can design the network to match your app’s needs, not the other way around — which is common in rigid shared hosting setups.
Moreover, cost is the third driver. Running your own private data centers means buying servers, switches, power, cooling, and staff. A virtual private cloud gives you the same isolation on shared public cloud infrastructure — at a fraction of the cost. Instead, you pay only for the compute and block storage you use. The VPC network itself is free on all three major cloud platforms. This makes VPC the default starting point for any firm that wants private networking in the cloud. Whether you are a startup running one app or an enterprise running thousands, the virtual private cloud is where your cloud journey begins. It scales from a single subnet to a global mesh of peered VPCs across multiple regions and cloud platforms.
Common Use Cases for a Virtual Private Cloud
A virtual private cloud fits many different setups. Below are the use cases firms run into most often.
Hosting Web and App Workloads
Without a doubt, the most basic use case is hosting virtual server instances and apps inside a VPC. Because the network is logically isolated, your workloads run in a safe space. Public facing resources like load balancers sit in public subnets. Backend logic and databases sit in private subnets. This split is easy to set up on any cloud platform and covers most standard web apps. Block storage volumes attach to your virtual server instances inside the VPC, giving each server its own disk. All network traffic between these resources stays inside the virtual private cloud — it never crosses the public internet.
Multi-Tier App Designs
For complex apps, firms split the VPC into tiers — a web tier, an app tier, and a data tier. Each tier gets its own dedicated subnet with its own set of security rules. The web tier talks to the internet. Meanwhile, the app tier talks only to the web tier. Only the app tier can reach the data tier. This design limits how far an attacker can move if one tier is breached. Routing tables enforce the paths between tiers. Security groups enforce the allowed ports and protocols. Together, they create a strong, layered defense inside the virtual private cloud.
Compliance and Data Isolation
For compliance-driven firms, VPCs help meet data-isolation rules. For example, healthcare firms keep patient data in a private subnet with no internet access. Similarly, financial firms isolate trading systems from public facing services. Likewise, government agencies use VPCs on cloud regions that meet specific data-sovereignty rules. Because a virtual private cloud vpc is logically isolated from all other tenants on the same cloud platform, it satisfies the strict network-level separation that many compliance frameworks require — including PCI DSS, HIPAA, SOC 2, and ISO 27001.
Core Parts of a Virtual Private Cloud
A virtual private cloud is made up of several core parts. Each part controls a different aspect of the network. Below is what you will find inside every VPC, no matter which cloud platform you use.
Subnets
Essentially, a subnet is a range of ip addresses inside your virtual private cloud. In practice, you divide your VPC into subnets to organize your vpc resources by function, security level, or location. A public-facing subnet holds resources that need to talk to the internet — like web servers and public load balancers. A private subnet holds resources that should not be public facing — like databases, backend APIs, and internal services. Each subnet lives in one availability zone (on AWS) or one region (on Google Cloud). As a result, spreading subnets across zones gives you fault tolerance — if one availability zone goes down, your app keeps running in the others without manual action.
IP Addressing
First, when you create a virtual private cloud, you choose an ip address range using CIDR notation — for example, 10.0.0.0/16. This range defines all the ip addresses available inside your VPC. Then each subnet gets a smaller slice of this range — like 10.0.1.0/24. After that, every resource you launch — a virtual server, a database, a load balancer — gets an ip address from the subnet it sits in. Specifically, private ip addresses stay inside the VPC. Public ip addresses let resources talk to the internet. You control exactly which resources get public addresses and which stay private. This is one of the most important security decisions in every virtual private cloud.
Routing Tables
In short, routing tables tell network traffic where to go. Because of this, every subnet in your virtual private cloud has a routing table. Each table holds a list of rules: “If traffic is going to 10.0.0.0/16, send it inside the VPC. If traffic is going to 0.0.0.0/0, send it to the internet gateway.” If needed, you can add custom routes to send ip traffic through a NAT gateway, a VPN tunnel, or a VPC peering link. Routing tables are the traffic map of your virtual private cloud — they decide which paths data follows.
Security Groups and NACLs
Importantly, security groups are virtual firewalls that control exactly which network traffic can reach each of your vpc resources. In practice, each security group holds a list of allow rules — for example, “allow TCP port 443 from any source” or “allow SSH from the office IP only.” Security groups are stateful: if you allow inbound traffic, the reply is allowed out on its own. Network Access Control Lists (NACLs) add a second layer. They sit at the subnet level and check both inbound and outbound ip traffic. Unlike security groups, NACLs are stateless — so you must write separate rules for each direction. Combined, security groups and NACLs give you layered defense inside your virtual private cloud.
Gateways
Finally, gateways connect your virtual private cloud to the outside world. For example, an internet gateway lets resources in a public subnet send and receive traffic from the internet. Similarly, a NAT gateway lets resources in a private subnet reach the internet (for updates, patches, and API calls) without being public facing. Additionally, a virtual private gateway connects your VPC to your on-premises network through a virtual private network vpn tunnel or a dedicated link like AWS Direct Connect. In essence, these gateways are the doors of your virtual private cloud. You choose which doors to open and which to keep shut. Every door you leave closed reduces your attack surface and makes your virtual private cloud safer.

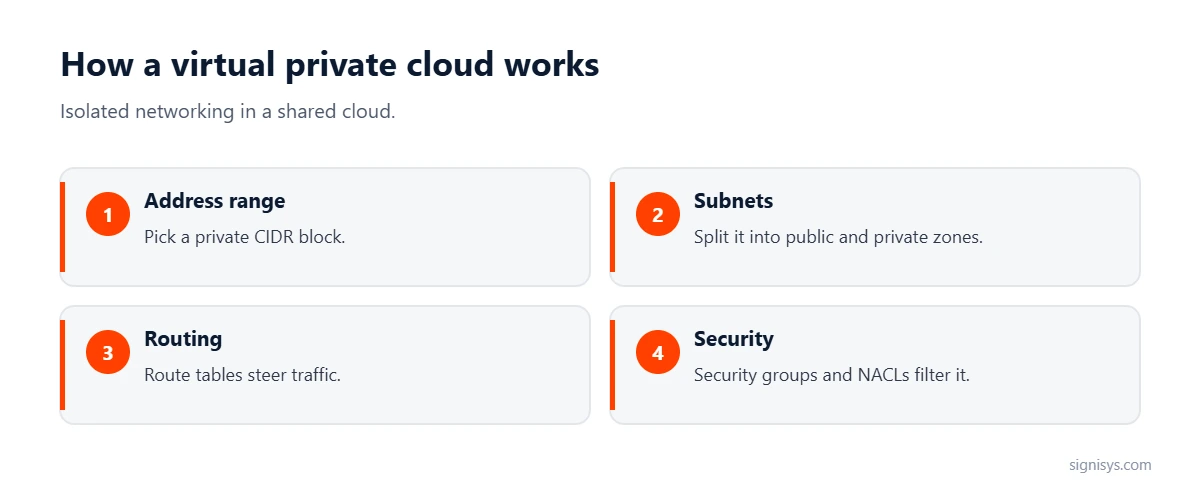

How a Virtual Private Cloud Works
A virtual private cloud works by using software to create an isolated network on top of shared physical hardware. The cloud provider runs thousands of physical servers in its global data centers. When you create a VPC, the provider carves out a logically isolated slice of that hardware for your use. Because of this, no other tenant can see your slice. The isolation is enforced through a mix of software-defined networking, VLAN tagging, and encrypted tunnels between physical hosts in the data centers.
Once created, inside your virtual private cloud, you deploy vpc resources — virtual server instances, databases, load balancers, container clusters, and block storage volumes. Each vpc resource gets an ip address from the subnet you place it in. As a result, network traffic between resources in the same VPC stays inside the VPC — it never touches the public internet. Traffic to the outside world flows through gateways you control — and only through gateways you choose to open. This is the same model as a corporate data center, complete with data centers, racks, and switches — but the “data center” is a logically isolated section of the cloud platform that only you can access.
VPC Flow Logs
Beyond compute and networking, flow logs capture details about the ip traffic flowing through your virtual private cloud. Every accepted and denied connection is logged with source and destination ip addresses, ports, protocol, and timestamp. These records form your complete audit trail for both ops troubleshooting and security incident investigations. You can export flow logs to a cloud storage bucket, a SIEM platform, or a dedicated log management tool for deep analysis and alerting. Without question, flow logs are the single most important visibility layer of your VPC — they show you who talks to whom, what gets blocked, and where the traffic goes. Without flow logs, your virtual private cloud is a black box.
VPC Networking — NAT, DNS, and Endpoints
Beyond the core parts, a virtual private cloud includes several networking features that control how vpc resources reach the internet, resolve names, and connect to cloud services.
NAT Gateways
A NAT (Network Address Translation) gateway lets resources in a private subnet reach the internet for outbound calls without exposing them to inbound access. For example, a database server may need to download patches or call an external API. A NAT gateway handles this by translating the private ip address to a public one on the way out and reversing it on the way back. The key point is that the outside world cannot start a connection to the private resource. All ip traffic flows outbound only — never inbound. This keeps private vpc resources safe while still giving them the outbound access they need for updates and API calls.
DNS and Service Discovery
Every virtual private cloud includes a built-in DNS resolver that maps resource names to ip addresses. When one service calls another by name — like “db.internal” — the VPC DNS resolves it to the right private IP. AWS uses Route 53 Resolver for this. Google Cloud uses Cloud DNS. On microsoft azure, the same role is filled by Azure DNS Private Zones. For larger setups, teams use service discovery tools (like AWS Cloud Map or Consul) that register every service on launch and remove it on shutdown. This makes it easy for one service to find another inside the virtual private cloud at runtime, without hard-coding ip addresses that may change.
VPC Endpoints and Private Links
By default, calls from your VPC to cloud services (like S3, DynamoDB, or BigQuery) travel over the public internet. VPC endpoints change this. Instead, they create a direct private path from your virtual private cloud to the cloud service — no internet gateway needed at all. This keeps all ip traffic inside the cloud provider’s backbone, which is both faster and much safer. AWS calls these VPC Endpoints (Gateway and Interface types). Microsoft azure uses Private Link for the same purpose. Google Cloud calls the feature Private Google Access. For firms that handle sensitive data, VPC endpoints are a must. They close the public exposure that a default cloud setup leaves open. Without endpoints, even “private” vpc resources send ip traffic over the public internet when they call cloud services.
Virtual Private Cloud and Container Workloads
Containers and Kubernetes clusters run inside a virtual private cloud. On AWS, Amazon EKS deploys worker nodes as virtual server instances in your VPC subnets. Similarly, GKE clusters on Google Cloud use VPC-native networking that assigns ip addresses from the VPC’s ip address range directly to pods. On microsoft azure, AKS clusters deploy into a VNet. In each case, the VPC provides the network layer that containers depend on.
Because containers share the same ip address space as the VPC, the same security groups and routing tables apply to container network traffic too. However, container networking adds its own separate layer of complexity — pod-to-pod routing, service discovery, and Kubernetes network policies all live on top of the VPC layer. Teams that run containers at scale should plan their VPC ip address range carefully. A /16 block (about 65,000 addresses) may not be enough if every pod gets its own private IP. To work around this, some firms use secondary CIDR blocks or overlay networks to extend the ip address range without tearing down and re-building the virtual private cloud from scratch.
Virtual Private Cloud on AWS, Azure, and Google Cloud
Each major cloud platform offers its own version of the virtual private cloud. The core concepts are the same, but the names, defaults, and features differ. Below is a quick map.
Amazon Virtual Private Cloud (Amazon VPC)
Amazon web services launched amazon vpc in 2009. It was one of the first cloud VPC services. On AWS, a VPC is regional — it spans all availability zones in one region. By default, each AWS account gets a ready-made VPC in every region, pre-built with a public subnet, an internet gateway, and default routing tables. You can create custom VPCs with any ip address range you choose. AWS adds features like VPC Endpoints (private access to AWS services without internet), Transit Gateway (hub for connecting many VPCs), and VPC Flow Logs for monitoring ip traffic. As a result, amazon virtual private cloud is the starting point for nearly every AWS deployment — from a single EC2 instance to a thousand-node Kubernetes cluster.
Microsoft Azure Virtual Network (VNet)
Microsoft azure calls its VPC a Virtual Network, or VNet. A VNet is regional, like AWS. You define an ip address range, create subnets, attach Network Security Groups (NSGs, which work like AWS security groups), and set up routing tables. Azure adds features like VNet Peering (connecting VNets across regions), Azure Private Link (private access to Azure services), and Azure Bastion (secure remote access without a public IP). Overall, the concepts match AWS almost one to one — only the names and UI differ.
Google Cloud VPC
Google Cloud takes a different approach. Its VPC is global by default — one VPC spans all regions. Subnets are regional, not zonal. Because of this, you can place resources in any region without creating a new VPC — a major simplification for global workloads. Google Cloud also auto-creates default firewall rules and routing tables at the VPC level, which simplifies the initial setup. Features like Shared VPC (share one VPC across multiple projects), VPC Service Controls (restrict data movement), and Private Google Access (reach Google services without a public IP) round out the offering.
| Feature | AWS (Amazon VPC) | Azure (VNet) | Google Cloud (VPC) |
|---|---|---|---|
| Scope | Regional | Regional | Global |
| Default VPC | ✓ Yes | ✓ Yes | ✓ Yes |
| Subnets | Per AZ | Regional scope | Per region |
| Firewall | Security Groups + NACLs | NSGs + ASGs | VPC Firewall Rules |
| Peering | VPC Peering / Transit GW | VNet Peering | VPC Network Peering |
| Private Access | VPC Endpoints | Private Link | Private Google Access |
| Flow Logs | ✓ VPC Flow Logs | ✓ NSG Flow Logs | ✓ VPC Flow Logs |
Security for a Virtual Private Cloud
A virtual private cloud is logically isolated, but it is not secure by default. You must build the security yourself. Below are the key controls every VPC needs.
Defense in Depth
Start by layering your controls. Use security groups on every resource to filter network traffic at the instance level. Use NACLs at the subnet level as a backup filter. Place sensitive vpc resources like databases in private subnets with no internet gateway. Use a NAT gateway for outbound-only access. This layered model means an attacker who gets past one control still faces the next. No single rule protects everything — depth is what makes the virtual private cloud hard to breach. This layered model is a core principle of cybersecurity in any cloud setup.
Flow Logs and Monitoring
Also, turn on flow logs for every subnet. Send them to a central SIEM or log tool. Then set alerts for unusual patterns — like a private subnet sending ip traffic to an unknown public IP, or a spike in denied connections. Flow logs are the eyes of your virtual private cloud. Without them, you cannot see what is happening inside your network. Also, pair flow logs with a threat intelligence feed to spot connections to known malicious ip addresses in real time.
Access Controls and IAM
Furthermore, use Identity and Access Management (IAM) to control who can create, change, or delete vpc resources. Limit VPC admin rights to a small group. Require MFA for every admin account without exception. Apply least privilege — a developer who needs to launch virtual server instances should not have the power to delete subnets or change routing tables. Also, audit IAM policies on a regular schedule. A single over-permissive IAM role can undo months of careful VPC design in one click. Firms that need round-the-clock coverage can partner with a provider of managed cybersecurity services to monitor their VPC layer.
Every AWS account comes with a default VPC that has open security groups and a public subnet. Never use the default VPC for any production workloads. Create a custom virtual private cloud with tight rules from day one.
Connecting VPCs — Peering, Transit, and Hybrid
Most firms run more than one virtual private cloud. Dev, staging, and prod may each have their own VPC. Different teams or business units may use separate VPCs for isolation. Connecting them safely is a core part of VPC design.
VPC Peering
At the simplest level, VPC peering creates a direct link between two VPCs. Traffic flows over the cloud provider’s backbone — it never touches the public internet. Peered VPCs can share vpc resources across accounts or regions. However, peering does not scale well beyond a few VPCs. Each pair needs its own peering link. Ten VPCs need 45 separate links. Twenty VPCs need 190. This is where a transit gateway comes in to solve the scaling problem.
Transit Gateway
Instead, a transit gateway acts as a hub that connects many VPCs (and VPN tunnels) through a single point. Instead of peering each VPC to every other, you connect each VPC to the transit gateway. The gateway handles all routing between them through a single set of routing tables. AWS Transit Gateway is the most common example. As a result, this hub-and-spoke model scales to hundreds of VPCs and keeps routing tables simple. It is the go-to pattern for large multi-account setups.
Hybrid Cloud Connectivity
In practice, many firms run workloads in both the cloud and their own data centers. A hybrid cloud setup connects the virtual private cloud to the on-premises network using a virtual private network vpn tunnel or a dedicated line (like AWS Direct Connect or Azure ExpressRoute). All network traffic between the VPC and the data center flows over an encrypted, low-latency path — private and fast. Hybrid connectivity lets firms keep their most sensitive workloads on-prem in their own data centers while running scale-out workloads in the virtual private cloud. Custom routing tables in the VPC point on-prem-bound ip traffic toward the VPN or direct link gateway.
Best Practices for Virtual Private Cloud Design
A well-designed virtual private cloud is easy to manage and operate, easy to scale, and hard to breach. Follow these best practices to avoid the most common mistakes.
Plan Your IP Address Range
Before anything else, choose an ip address range that is large enough for growth but does not overlap with your on-prem network or other VPCs. If two networks share the same ip address range, they cannot peer or connect via VPN. Use private ranges from RFC 1918 — 10.0.0.0/8, 172.16.0.0/12, or 192.168.0.0/16. A /16 gives you about 65,000 addresses — plenty of room. A /24 gives you just 256 — tight for any real workload. Plan for the load you expect in three to five years, not today’s load. Changing the ip address range later is painful and may require tearing down the VPC and starting over. Plan big from the start.
Separate Public and Private Subnets
As a rule, place every resource that does not need internet access in a private subnet. This includes databases, caches, backend APIs, and internal tools. Only public facing resources — like load balancers, bastion hosts, and NAT gateways — should sit in a public subnet. Use NAT gateways to let private resources reach the internet for updates without being exposed. Pair NAT gateways with endpoint security agents on each virtual server instance for outbound traffic control at both the network and host level. This simple public/private subnet split is the single most effective and easiest security step you can take inside a virtual private cloud. It costs nothing to implement and blocks the most common and dangerous cloud security mistakes.
Tag Everything
Always tag every VPC, subnet, security group, and resource with consistent labels — env (dev/staging/prod), team, cost center, and app name. Tags make it possible to filter vpc resources in billing reports, audit logs, and automation scripts. Without tags, cost tracking and incident response both become guesswork. Without tags, a large virtual private cloud becomes a mess of unnamed resources that no one can trace back to a team or a purpose. Importantly, tagging is cheap. However, debugging untagged resources is not.
Plan your virtual private cloud before you build it. Choose a large enough ip address range, split public and private subnets, layer security groups and NACLs, turn on flow logs from day one, and tag everything. These simple basics prevent 90% of the VPC issues that firms run into in production.
VPC Cost and Scaling
The virtual private cloud itself is free on AWS, microsoft azure, and Google Cloud. However, several VPC features carry cost. NAT gateways charge by the hour and by the gigabyte of ip traffic processed. VPC peering and Transit Gateway charge by the amount of data transferred. Public ip addresses carry a per-hour cost on AWS. VPC endpoints charge per hour on some cloud platforms. These costs can add up fast in large setups with heavy ip traffic volumes.
To keep costs under control, review your VPC bill monthly. In particular, check NAT gateway data charges — a misconfigured route that sends all ip traffic through a NAT gateway instead of a VPC endpoint can cost thousands per month. Also, clean up unused resources. Old security groups, empty subnets, and detached network interfaces clutter the virtual private cloud and make security audits much harder than they need to be. Finally, use VPC flow logs to spot unexpected data flows — like a service sending large volumes of data to an external IP that should be using a private endpoint instead.
Conclusion
A virtual private cloud is the starting point for every cloud deployment. It gives you a logically isolated network inside a public cloud — with your own ip addresses, subnets, routing tables, firewalls, and gateways. Whether you use amazon web services, microsoft azure, or Google Cloud, the virtual private cloud is where all of your workloads live and run. It provides the core network foundation that every other cloud service and application sits on top of.
Therefore, build it right from the start. Therefore, plan your ip address range carefully for future growth. Split public and private subnets. Layer security groups and NACLs. Turn on flow logs. Connect VPCs through peering or a transit gateway. Connect to on-premises data centers through a virtual private network vpn or a direct line. The firms that design their virtual private cloud with care gain a network that is secure, scalable, and ready for whatever comes next. A well-built VPC is the solid foundation that every other cloud service sits on. Invest in it early and it pays back for years with fewer outages, faster debugging, better compliance, and stronger overall security.
Sources and References
- AWS — What Is Amazon VPC?
- Cloudflare — What Is a Virtual Private Cloud (VPC)?
- Google Cloud — VPC Overview
